提醒

在hub.docker.com网站上，Star最多的kafka镜像是wurstmeister/kafka，今天一起来实践这个镜像，使用此镜像搭建kafka环境，并且生产和消费消息；
https://developer.aliyun.com/article/988818

实战环境

操作系统：CentOS7
Docker：24.0.2
docker-compose：v2.18.1

编写docker-compose.yml

version: "3"

# 通用配置
x-common-config: &common-config
  KAFKA_ZOOKEEPER_CONNECT: zookeeper:2181
  KAFKA_NUM_PARTITIONS: 3
  KAFKA_DEFAULT_REPLICATION_FACTOR: 2

# kafka镜像通用配置
x-kafka: &kafka
  image: wurstmeister/kafka
  networks:
    net:
  depends_on:
    - zookeeper

services:

  zookeeper:
    container_name: zookeeper
    image: wurstmeister/zookeeper
    ports:
      - "2181:2181"
    environment:
      - ALLOW_ANONYMOUS_LOGIN=yes
    networks:
      - net
    volumes:
      - zookeeper_data:/wurstmeister/zookeeper

  kafka-0:
    container_name: kafka-0
    <<: *kafka
    ports:
      - "9093:9093"
    environment:
      <<: *common-config
      KAFKA_BROKER_ID: 0
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://114.115.166.169:9093
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9093
    volumes:
      - kafka_0_data:/wurstmeister/kafka

  kafka-1:
    container_name: kafka-1
    <<: *kafka
    ports:
      - "9094:9094"
    environment:
      <<: *common-config
      KAFKA_BROKER_ID: 1
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://114.115.166.169:9094
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9094
    volumes:
      - kafka_1_data:/wurstmeister/kafka

  kafka-2:
    container_name: kafka-2
    <<: *kafka
    ports:
      - "9095:9095"
    environment:
      <<: *common-config
      KAFKA_BROKER_ID: 2
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://114.115.166.169:9095
      KAFKA_LISTENERS: PLAINTEXT://0.0.0.0:9095
    volumes:
      - kafka_2_data:/wurstmeister/kafka

volumes:
  zookeeper_data:
  kafka_0_data:
  kafka_1_data:
  kafka_2_data:


networks:
  net:

启动server

在docker-compose.yml所在的文件夹下，执行命令docker compose up -d，会先下载zookeeper和kafka的镜像，然后创建容器；
执行命令docker compose ps，可见启动了一个zookeeper和三个kafka容器：

[root@hecs-334217 kafka-compose]# docker compose ps
NAME                IMAGE                    COMMAND                  SERVICE             CREATED             STATUS              PORTS
kafka-0             wurstmeister/kafka       "start-kafka.sh"         kafka-0             28 minutes ago      Up 28 minutes       0.0.0.0:9093->9093/tcp, :::9093->9093/tcp
kafka-1             wurstmeister/kafka       "start-kafka.sh"         kafka-1             28 minutes ago      Up 28 minutes       0.0.0.0:9094->9094/tcp, :::9094->9094/tcp
kafka-2             wurstmeister/kafka       "start-kafka.sh"         kafka-2             28 minutes ago      Up 28 minutes       0.0.0.0:9095->9095/tcp, :::9095->9095/tcp
zookeeper           wurstmeister/zookeeper   "/bin/sh -c '/usr/sb…"   zookeeper           28 minutes ago      Up 28 minutes       22/tcp, 2888/tcp, 3888/tcp, 0.0.0.0:2181->2181/tcp, :::2181->2181/tcp

查看版本号

执行以下命令查看容器中的kafka版本号：

[root@hecs-334217 kafka-compose]# docker exec kafka-0 find / -name \*kafka_\* | head -1
| grep -o '\kafka[^\n]*'
kafka_2.13-2.8.1

上述命令执行后，我这边控制台显示kafka_2.11-0.11.0.3，这表示Scala 的版本为2.11，kafka的版本是0.11.0.3；
执行以下命令查看zookeeper版本：

[root@hecs-334217 kafka-compose]# docker exec zookeeper pwd
/opt/zookeeper-3.4.13

创建topic

创建一个topic，名为topic001，3个partition，副本因子2，执行以下命令即可：

[root@hecs-334217 kafka-compose]# docker exec kafka-1 kafka-topics.sh --create --topic topic001 --partitions 3 --zookeeper zookeeper:2181 --replication-factor 2
Created topic topic001.

执行以下命令查看刚刚创建的topic，这次在容器kafka-2上执行命令试试：

[root@hecs-334217 kafka-compose]# docker exec kafka-2 kafka-topics.sh --list --zookeeper zookeeper:2181
test
topic001

可见刚刚创建的topic可以被查到；
查看刚刚创建的topic的情况，borker和副本情况一目了然，如下：

[root@hecs-334217 kafka-compose]# docker exec kafka-0 kafka-topics.sh --describe --topic topic001 --zookeeper zookeeper:2181
Topic: topic001 TopicId: umQtyLTtQQCeMG8W5bWcpA PartitionCount: 3       ReplicationFactor: 2    Configs:
        Topic: topic001 Partition: 0    Leader: 0       Replicas: 0,1   Isr: 0,1
        Topic: topic001 Partition: 1    Leader: 1       Replicas: 1,2   Isr: 1,2
        Topic: topic001 Partition: 2    Leader: 2       Replicas: 2,0   Isr: 2,0

消费消息

执行如下命令，即可进入等待topic为topic001消息的状态：

docker exec kafka-2 \
kafka-console-consumer.sh \
--topic topic001 \
--bootstrap-server kafka-0:9093,kafka-1:9094,kafka-2:9095

目前还没有生产消息，因此控制台不会有内容输出，接下来尝试生产消息；

生产消息

打开一个新的窗口，执行如下命令，进入生产消息的命令行模式，注意不要漏掉参数"-it"

docker exec -it kafka-1 \
kafka-console-producer.sh \
--topic topic001 \
--broker-list kafka-0:9093,kafka-1:9094,kafka-2:9095

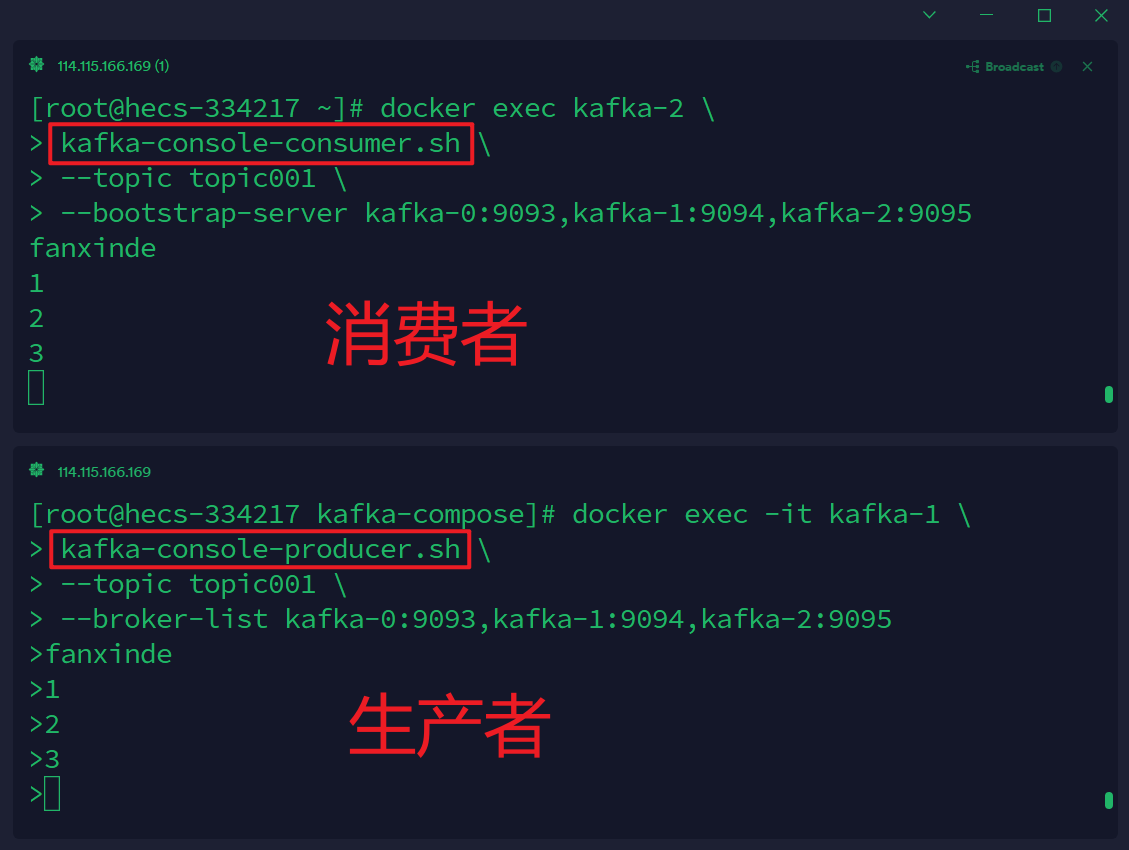

现在已经进入了生产消息的命令行模式，输入一些字符串然后回车，再去消费消息的控制台窗口看看，已经有消息打印出来，说明消息的生产和消费都成功了。

docker compose 命令

# 启动：
$ docker compose up -d  # docker-compose up -d 这种是旧版的，新版本已经抛弃了

# 查看compose容器
$ docker compose ps

# 删除容器：
$ docker compose down

Kafka 可视化工具（Kafka Tool）

https://www.cnblogs.com/miracle-luna/p/11299345.html
